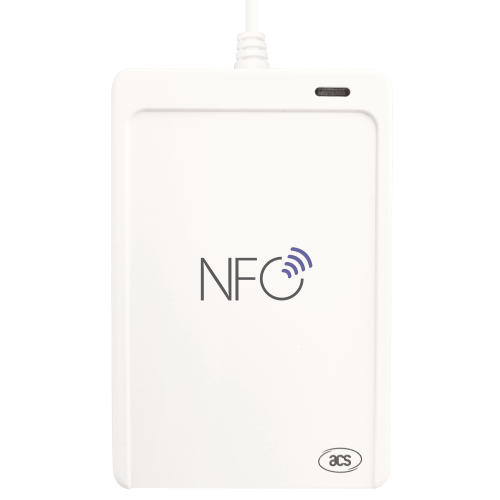

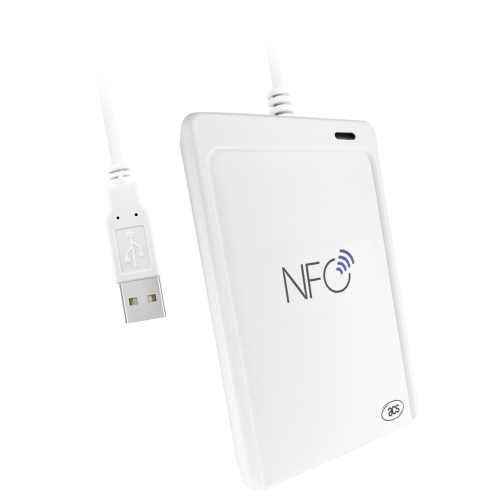

ACR1552U USB NFC Reader IV is the fourth generation of USB NFC Reader developed based on 13.56 MHz contactless technology. It can access contactless cards and devices following the ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards.

Physical Characteristics
Dimensions (mm)	Main Body: 98 x 65 x 12.8 mm Antenna size: 50 x 40 mm
Weight (g)	89 g
USB Interface
Protocol	USB CCID
Connector Type	USB Type-A (ACR1552U-M1), USB Type-C (ACR1552U-MF)
Power Source	From USB port
Speed	USB Full Speed (12 Mbps)
Cable Length	1m, Non-detachable
Contactless Smart Card Interface
Standard	ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol	ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO 15693   ISO 18092 NFC Tags  FeliCa
SAM Card Interface
Number of Slots	1 Standard SIM-sized Card Slot
Standard	ISO 7816 Class A (5V)
Protocol	T=0; T=1
Built-in Peripherals
LED	1 bi-color: Blue and Green
Buzzer	Yes
Other Features
Other Features	Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card   NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Firmware Upgrade	Supported
Certifications/Compliance
Certifications/Compliance	Certifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft® WHQL Compliance: USB CCID, PC/SC
Device Driver Operating System Support
Device Driver Operating System Support	Windows®, Linux®, macOS, Android™, iOS/iPadOS (16 or above)
